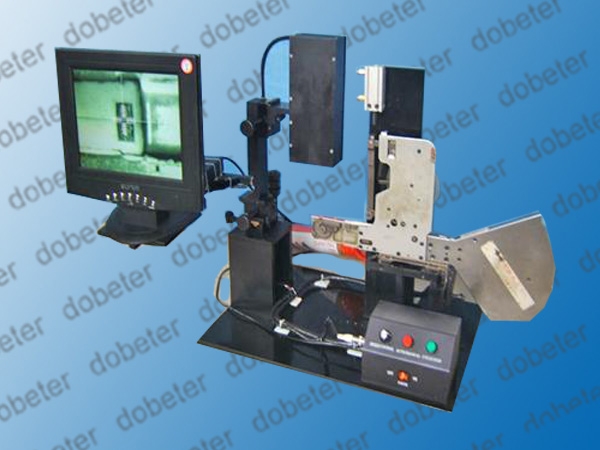

FUJI Feeder Calibration Jig

FUJI Feeder Calibration Jig-- Fuji CP3;CP4;CP6;CP7;IP1; IP2; IP3; QP; QP; XP141;XP142

FUJI Feeder Calibration Jig

1:Product Name:Intellectual Feeder Calibration Jig
2:Model:DBE-FCJ
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable
* Actual feeding like machine running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 50
* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
* Verify and calibrate feeders correctly by using master steel tapes.
* Ligth, beautiful and more durable。
4: Available for feeders such like Panasonic , Fuji , FUJI , Yamaha ,Samsung , KME , Siemens , Sanyo etc
5: Power AC / 220V(50Hz)60W
6: Air pressure:4-5kg/cm2
7: Volumne:530mm(L)×350mm(W)×580mm(H)
8: Weight :Net Weight :22 Kg; Gross Weight : 36Kg.


User Manual

LOCK:To lock current position of X axis line and Y axix line
X1: Used to move the X axis line
Y1: Used to move the X axis line
LUM: Cross line of black and white color conversion.
POWER: Power Switch
LED:POWER Power Light
MANUAL: Manual mode.Press this button one time,the feeder will feed one time
AUTO: Auto Mode.Press this button, the feeder will feed continueously.
SPEED:Speed Control


FUJI CP6 CP7 ... FUJI NXT
FUJI Feeder Calibration Jig SMT Feeder Calibration Jig for

FEATURE

  1. 8-24mm width. Various parts cassettes can be checked.
  2. Actual feeding like machine running can be simulated
  3. 50X CCD; with LED lighting, appearance clearer.
  4. Speed of feeding can be adjusted
  5. Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
  6. Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification


Working Voltage

220V/AC(50Hz) 60W

 Machine  Size

300*400*500 mm
(Width * Length *Height)

 Machine Weight

45Kg
